Wuko Master 0420S
$47,780.00
Roof panel machine for making the profile for single and double-lock standing seams (seam height 25 mm / 1″)

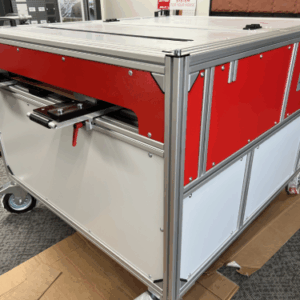

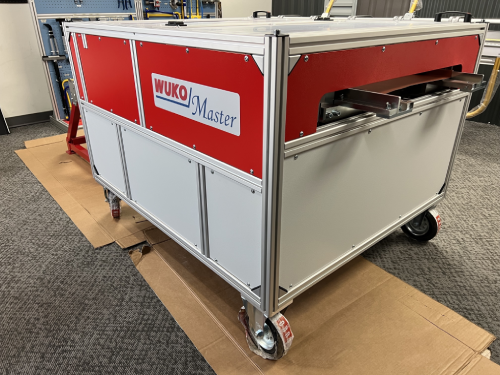

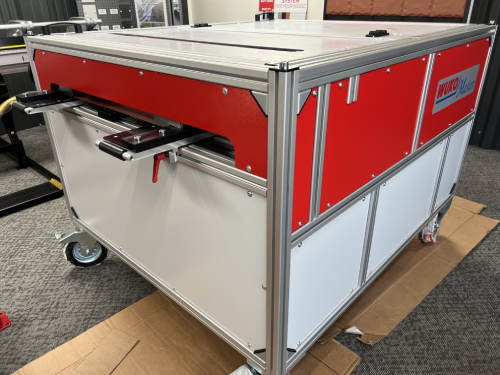

- Machine frame made of modular aluminium profile system
- Upper machine cover: Swing doors, easy to open, with safety switch, frame elements made of transparent, impact‐resistant polycarbonate
– clear view during profiling process
– easy access for adjustment and service - Mobile, two fixed and two swivel castors with brake
- 120 V motor with frequency converter for continuously variable working speed: 0–12 m/min / 0–40 ft/min – huge advantage for rounding the panels and for one-sided profiling
- Forward and backward run
- Model 0420 and model 0420S (with longitudinal cutting facility) available
- Description
- Size Guide
- Additional information
- Reviews (0)
Description
Profiling

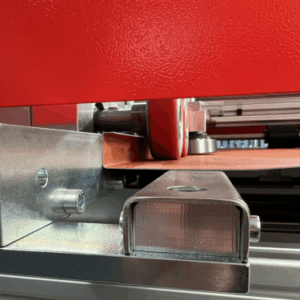

- Fabrication of the profile for the single or double-lock standing seam
seam height 25 mm / 1″ - Working width between 290 and 810 mm / 11.5″ and 32″ continuously adjustable by hand wheel over two spindles

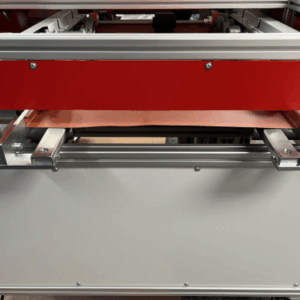

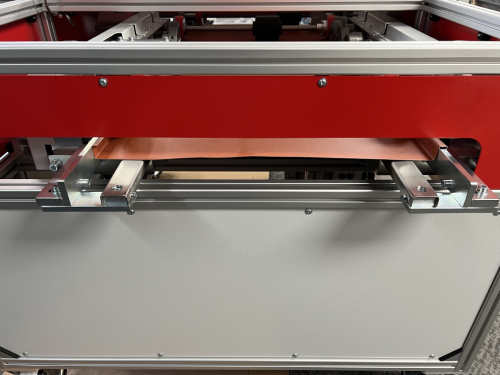

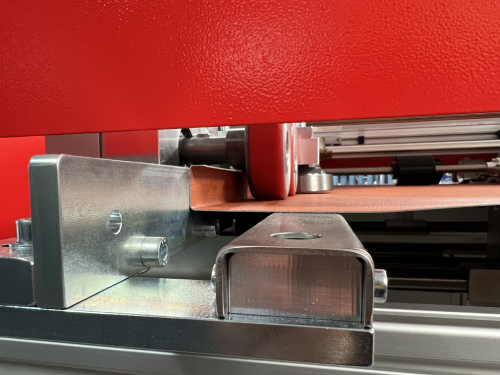

⇒ panel width about 210–730 mm / 8.3–28.7″ - Inlet guides easily and precisely adjustable (measure correction on the profile)
- Clean profile, poor in tension, made by eight hardened roll forming stations
- 8th forming station for aligning the panels and for curving the panels – convex or concave – smallest radius about 6 m / 20′

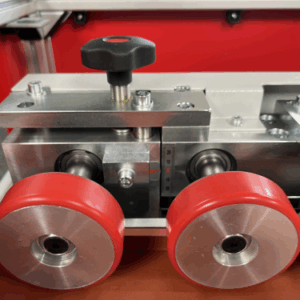

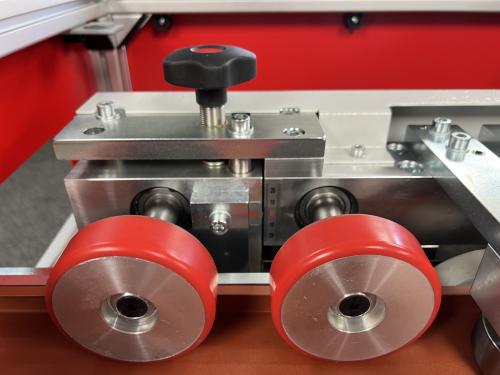

- Cut‐proof, extremely resilient polyurethane coated drive rollers
- Electromechanic preset counter – safely placed within the frame
- Also for profiling short (min. length about 500 mm / 20″) or tapered panels
Technical data
| Name | Value |
|---|---|
| Max. Sheet Metal Thickness galvanized steel | 0.7 mm / 0.028″ |
| Max. Sheet Metal Thickness aluminium, copper, zinc | 0.8 mm / 0.031″ |
| Max. Sheet Metal Thickness stainless steel | 0.5 mm / 0.020″ |
| Motor | 120 V |
| Length | 154 cm / 60.6″ (with guides) |
| Width | 131 cm / 51.6″ (with handles) |
| Height | 105 cm / 41.3″ |
| Weight | 365 kg / 800 lbs |
Product variations
| Name | Item number | Properties |
|---|---|---|
| WUKO Master 0420 | 1005800 | 120 V |
| WUKO Master 0420S | 1005818 | 120 V, with longitudinal cutting facility |
| size | chest(in.) | waist(in.) | hips(in.) |
|---|---|---|---|
| XS | 34-36 | 27-29 | 34.5-36.5 |
| S | 36-38 | 29-31 | 36.5-38.5 |
| M | 38-40 | 31-33 | 38.5-40.5 |
| L | 40-42 | 33-36 | 40.5-43.5 |
| XL | 42-45 | 36-40 | 43.5-47.5 |
| XXL | 45-48 | 40-44 | 47.5-51.5 |
Additional information
| Weight | 800 lbs |
|---|
