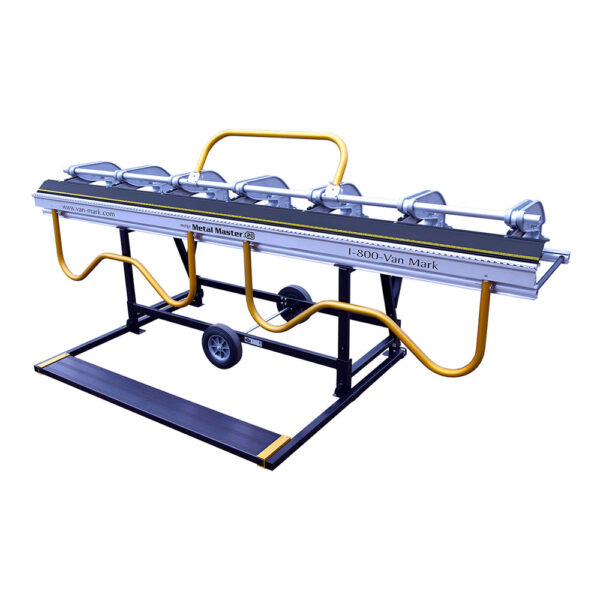

Van Mark – Industrial Metal Master 14’6″
Call for price
Introducing our new and improved castings, lighter yet stronger. Question: How do you make something Lighter yet stronger? Answer: Innovative Design using solid Modeling Technology. This allows each casting to clamp tighter, producing more accurate and precise bends.
Over a quarter century ago, Van Mark introduced the worlds first cam locking system in a portable brake. Through time it has proven to be the strongest and most reliable locking mechanism. Now Van Mark has done it again with our Industrial Metal Master® 20 EZ incorporating the best locking system with the deepest throat in the portable brake industry.
The Industrial Metal Master® 20 EZ comes with the latest in computer-aided design and manufacturing to provide the best one-stop-shop for all your job site bending, from “W” style valley-pan & rake edges, to soffits & roof flashings, including wide hip and ridge cap, HVAC duct & plenum work, to name a few.
- Description
- Size Guide
- Additional information
- Reviews (0)
Description
New Casting, lighter yet stronger.
POWERlock™ provides a strong clamping without need for adjusting when changing material.
POWERslot™ hinge “auto-measures” 5 ⁄ 8″ hem with ease.
Increased bending radius simplifies hemming & over-bending resulting in faster, easier operations.
Series: Industrial Metal Master 20 EZ – 60 Series
Model: IM1465**
Length: 14’6″ (4.42 m)
Castings: 10 ea.
Weight: 385 lbs (175.0 kg)
Throat Depth: 20″
Hinge Type: POWERslot™
Stand Options: Master Stand EZ Included
Warranty: 1 Year
BENDING CAPACITIES*
Material Maximum Thickness
Aluminum (3003H14) .050″
Galvanized Steel 20 ga.
Painted Steel (Grade D) 24 ga.
Roofing Copper 36 oz. soft
Zinc .050″ soft
Stainless Steel (304L) 24 ga.* Capacities are based on standard metal properties for coil & sheet. Please contact our factory for capacities on your specific material.
